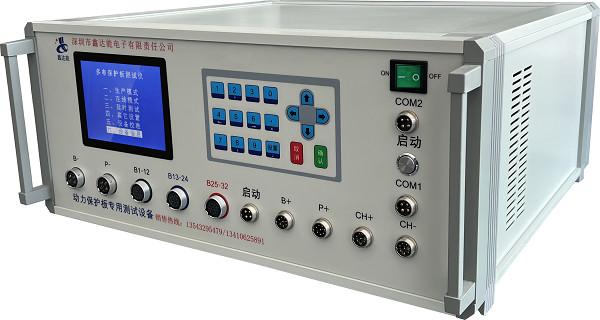

1-32 Series 120A Over Discharge Protection Current Cylindrical Battery Pack BMS Tester Lithium Battery Protection Board
1. Test Function
Overcharge protection voltage , overcharge recovery voltage , overcharge protection voltage , overput recovery voltage , overdischarge current protection , short protection performance test , charging current protection , balanced open voltage , balanced real - time current , protection plate total since consumption current , single section self consumption current , overcharge protection delay , overprotection delay , overcurrent protection delay , internal resistance
2. Scope Of Application
The battery tester is applied in the safety test of 1 - 32 string lithium battery protection plate , testing whether the functional indicators of the protection board are within the range of reasonable parameters, providing the staff with a set of testing standards, which is conducive to improving production efficiency , convenient quality control , compatible with the common protection board types on the market.
3. Equipment Environmental Requirements
1) Ambient temperature -10~45℃ ;
2) No strong vibration environment , no corrosive gas and flammable and explosive gas existence
4. Equipment Parameter Description
| Project Type |
Test Specification |
Resolution Ratio |
| Test The Number Of Strings |
1-32 Strings |
|
| Reference Voltage |
0.5-5V |
±1mV |
| Overcharge To Protect Voltage |
0.5-5V |
±1mV |
| Overcharge Protection Is Lifted |
0.5-5V |
±1mV |
| Overdischarge Protection Voltage |
0.5-5V |
±1mV |
| Overrelease Protection Is Lifted |
0.5-5V |
±1mV |
| Overdischarge Current Protection Value |
1-150A |
±0.1A |
| Overcharge Flow Protection Value |
1-40A |
±0.1A |
| Overflow Protection Delay |
0-10S |
±1ms |
| Overcharge / Overcharge Protection Delay |
0-20S |
±1ms |
| Balanced Turn On Voltage |
0.5-5V |
±5mV |
5. FAQ
1.Are you a manufacturer or a trading company
We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
2.What can you buy from us?
PBTS Series Protection Board Tester,BTS series comprehensive tester,BCDS series charging and discharging aging cabinet,BDS series discharge instrument
3.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.How long is your delivery time?
1). If the goods are in stock, it is 5-10 days.
2). We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
